Bridging TFs Between ROS and Isaac Sim
You can have the world’s best control stack, a photorealistic simulation, and precise hardware, but if your TFs are off, your robot will live in a false reality.
If you’ve ever set up a robot in both ROS and Isaac Sim, you’ve probably run into this invisible wall: everything looks right, but the robot doesn’t act right. Camera views don’t align, end-effectors miss their marks, and sensor data seems… off.
More often than not, the culprit is a mismatch in TFs — the transforms that define where things are in 3D space.
🧠 TFs
In ROS, TFs are broadcasted relationships between coordinate frames. They tell the system how each part of the robot is positioned and oriented in 3D space — and crucially, how these relationships change over time.
In Isaac Sim, similar relationships exist through USD’s xformOp:transform or URDF frame definitions — but they’re often static, defined once in the model.
The two systems need to be in sync, especially if you’re simulating in Isaac and controlling via ROS, or vice versa. This includes everything from your robot’s base link, to the camera mount, to the gripper tip.
🚨 The Top Issue: TF Drift Between Definitions
Here’s the most common and costly mistake:
The TF tree in Isaac doesn’t match the TF tree in ROS.
Maybe:
- A
base_linkin ROS is off by 5 cm from the one in Isaac. - A camera is rotated 90° between the two systems.
- A frame defined in URDF isn’t properly exported to USD.
This leads to silent failures:
- Grasping fails, even though path planning seems fine.
- Visual SLAM misbehaves.
- Data collected in simulation is invalid for deployment.
Since both Isaac and ROS trust their own TF definitions, they won't warn you — but the robot's behavior will tell you something’s wrong… if you're lucky.

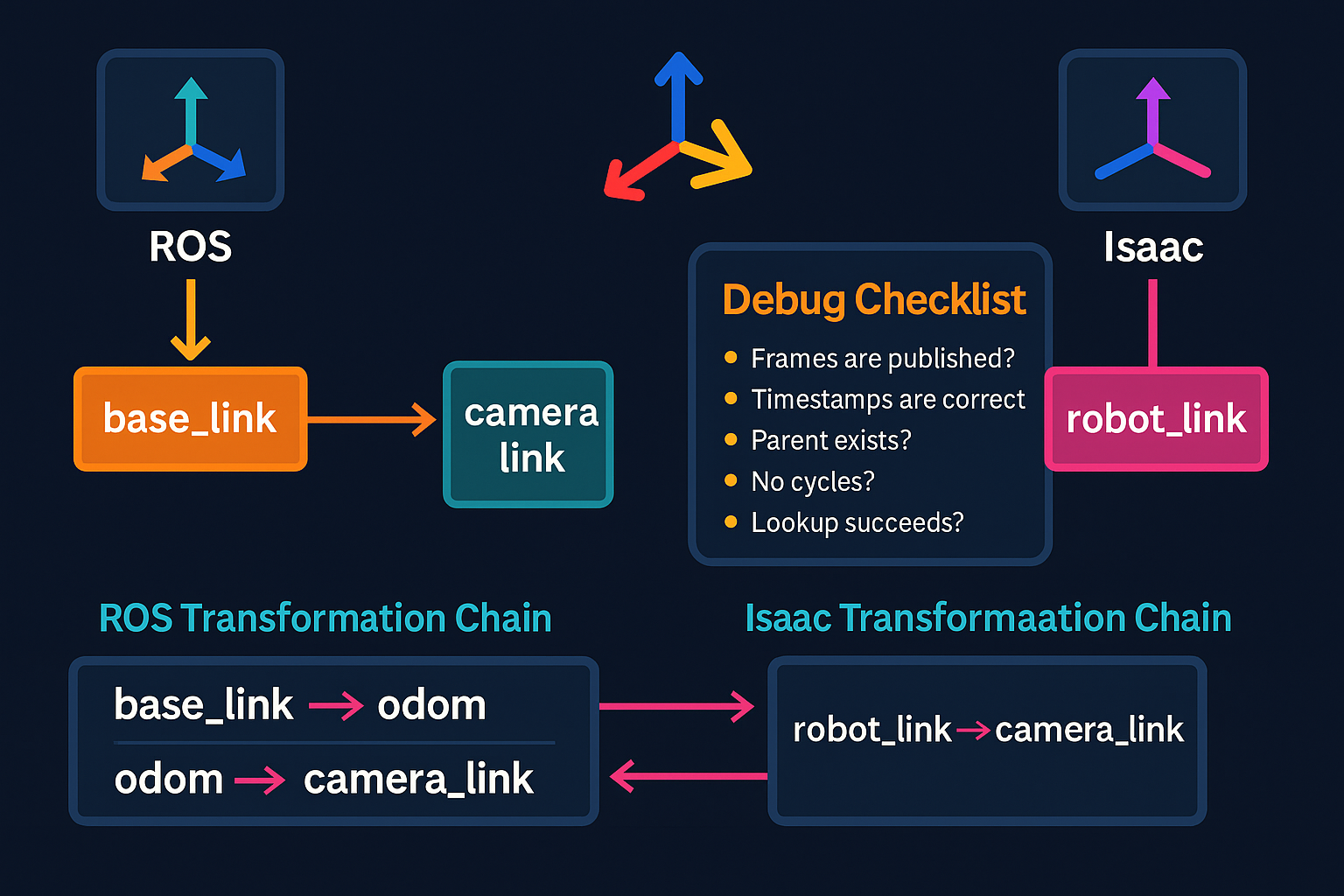

🧪 Debug Checklist: When Things Don’t Line Up
Here’s a quick sanity list when syncing Isaac Sim with ROS TFs:
✅ Compare your TF tree in ROS (ros2 run tf2_tools view_frames) with Isaac’s stage graph.
✅ Export USD files from URDF using Isaac’s converter — then verify transforms haven’t been collapsed or renamed.
✅ Add debug visualizers in RViz and Isaac to double-check alignment visually.
✅ Use /tf and /tf_static echoing in ROS to inspect real-time data. Is every frame there? Is it static or dynamic?
✅ Don’t hardcode transforms in code — keep them tied to TF where possible.
🔄 The Fix: Make TFs the Source of Truth
Whether you start from a URDF or a USD file, define your TFs once and make them consistent across both systems.
We recommend:
- Start with a clean URDF TF tree.
- Convert to USD using NVIDIA’s ROS tools.
- In Isaac, use
ros2_bridgeor your own publisher to keep/tfup to date — don’t fake transforms with hardcoded data.
Think of TFs as the ground truth API for your robot’s spatial awareness. Get it right, and everything else becomes easier — simulation, control, perception, deployment.
